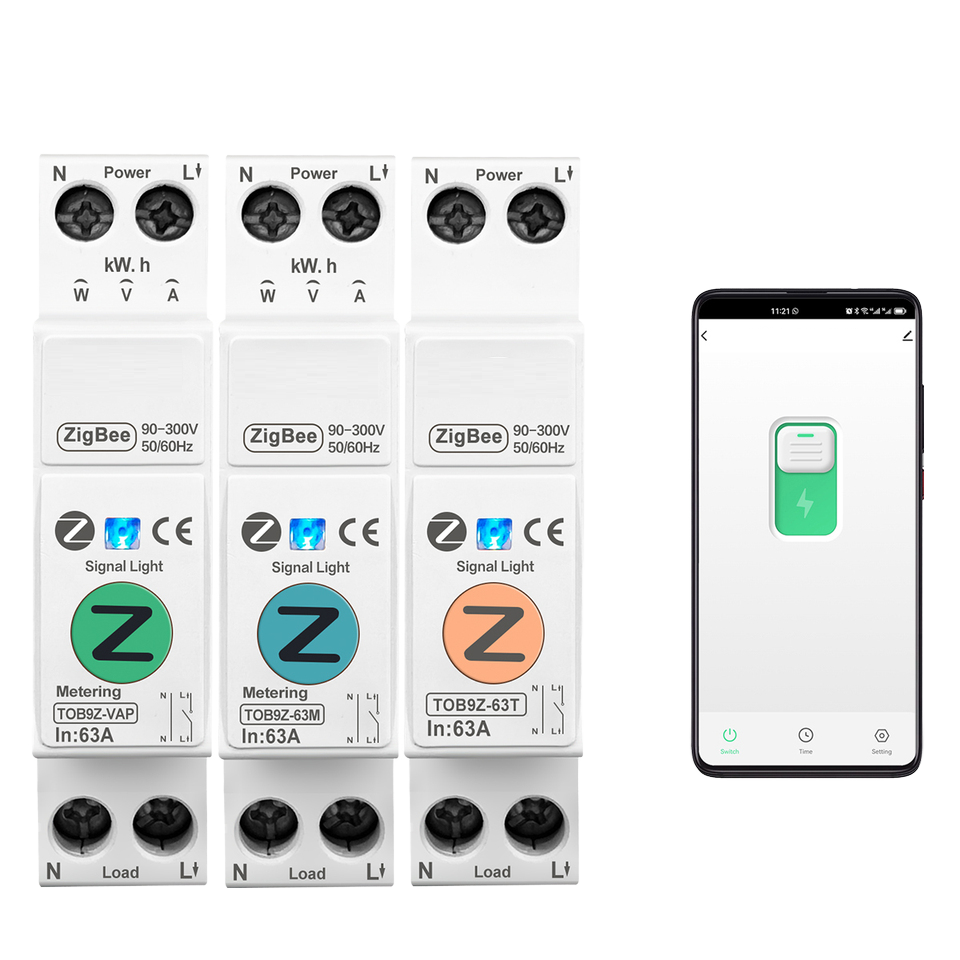

YUANGOU Zigbee 63A 1P+N WIFI Smart Switch Energy Meter Kwh Metering Monitoring Circuit Breaker Timer Relay MCB TUYA Smartlife

YUANGOU Zigbee 63A 1P+N WIFI Smart Switch Energy Meter Kwh Metering Monitoring Circuit Breaker Timer Relay MCB TUYA Smartlife

This smart switch from YUANGOU is full of highlights. Support Zigbee protocol, with 1P+N, 63A specifications, adapt to a variety of circuits. It incorporates WiFi and lets you control it remotely. Integrated energy meter, real-time measurement and monitoring of energy consumption. Circuit breakers ensure the safety of electricity, timers and relays increase the convenience of use, and perfectly adapt to graffiti and Smartlife ecology, comprehensively upgrade the intelligent life experience.

Category:

Description

Notice:

This device work with SMART LIFE APP/ TUYA APP Zigbee gateway.

Wiring: Power must enter from the top and must be Live line + Neutral Line (L+N). Live line + Live line (L+L) cannot be used.

TOB9Z-63M Metering

TOB9Z-63T No metering

TOB9Z-VAP Metering, voltage currrent and power protection

Function:



TOB9Z-63T Function TOB9Z-63M Function TOB9Z-VAP Function
Remote on/off Remote on/off Remote on/off
Time control function Time control function Time control function
Relay last status Relay last status Relay last status
Voltmeter Voltmeter
Ammeter Ammeter
Power meter Power meter
Active power Active power
Over voltage protection
Under voltage protection
Over current protection
Over power protection

Feature

1.Remote control at anytime from anywhere

2.Schedule/Timer/loop timer

3.Energy monitoring(TOB9Z-63M, TOBZ9-63VAP)

4. Working Voltage:AC 90-300V 50/60Hz

5.Mechanical Life: Over 100000 Times

6.Working Temperature: -25℃-70℃

Note:This meter Only supports 2.4G Wireless Network, NOT for 5G
